Stacked Screw Type Sludge Dewatering Equipment

asd (1)


This equipment is mainly used for sludge dewatering. After dewatering, the moisture content of the sludge can be reduced to 75% -85%. The stacked screw type sludge dewatering machine integrates a fully automatic control cabinet, flocculation and conditioning tank, sludge thickening and dewatering body, and liquid collection tank. It can achieve efficient flocculation under fully automatic operation conditions, and continuously complete sludge thickening and squeezing dewatering work, ultimately returning or discharging the collected filtrate.

Working Principle of Stacked Screw Type Sludge Dewatering Equipment

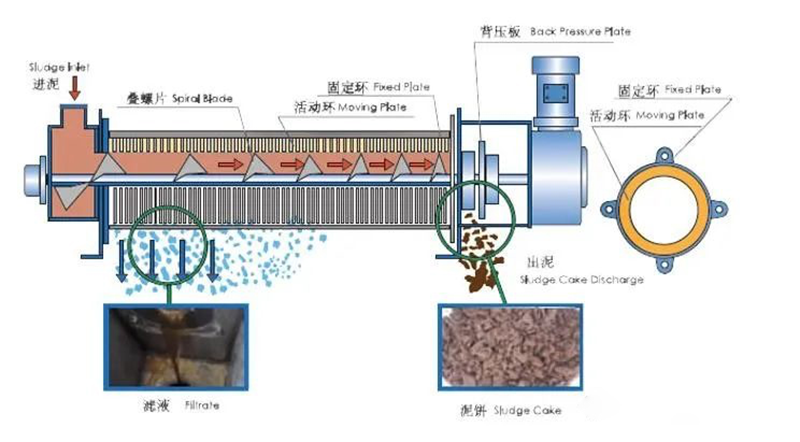

The dehydrator body is mainly composed of a filter body and a spiral shaft, and the filter body is divided into two parts: a concentration part and a dehydration part. So, when the sludge enters the filter body, the relative movement of the fixed ring and the movable ring is used to quickly discharge the filtrate through the lamination gap, quickly concentrate, and the sludge moves towards the dehydration part. When the sludge enters the dehydration part, the space in the filter chamber continuously shrinks, and the internal pressure of the sludge continuously increases. In addition, the back pressure effect of the pressure regulator at the sludge outlet enables it to achieve efficient dehydration, while the sludge is continuously discharged outside the machine.

asd (2)
