ZHG series of crane scraper ,mud scraper equipment

Short Description:


Product Detail

Product Tags

Working Principle

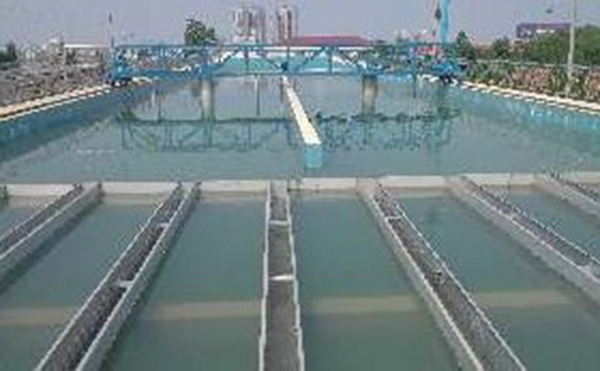

ZHG siphon sludge suction machine is one of the commonly used mechanical sludge discharge devices in sedimentation tanks. It is widely used for scraping and removing the deposited sludge in horizontal sedimentation tanks set on the surface or semi underground in water supply and drainage projects, especially for the removal of the deposited sludge in inclined tube (plate) rectangular sedimentation tanks.

The product has passed the provincial appraisal and is preferentially recommended by the Technical Supervision Bureau of the Ministry of construction and the Ministry of machinery of the State Science and Technology Commission.

3
2

Characteristic

Siphon is used to discharge sludge, which can run smoothly and save energy consumption.

The equipment structure is simple, and the structure of sedimentation tank is simplified to save project investment.

Walking and sucking sludge, working back and forth, little interference to sludge and good sludge discharge effect.

According to the sludge sedimentation, the working stroke and sludge discharge times can be adjusted to improve the sedimentation effect. High degree of automation, convenient operation, maintenance and management, and not prone to failure.

Technique Parameter

Mode

Overall dimension(mm)

Drive

Installation track

Pool width L

Lx

A

B

Walking speed (mmin)

Power(kW)

Mode

ZHG-4.0

3700

4000

2100

1500

1.0-1.5

0.55

Center drive

15k/m

ZHG-6.0

5700

6000

2100

1500

0.55×2

Center drive on both sides

22kgm

ZHG-8.0

7700

8000

2500

1900

ZHG-10

9700

10000

2500

1900

ZHG-12

11700

12000

2600

2000

ZHG-14

13700

14000

2600

2000

ZHG-16

15700

16000

2600

2000

0.75×2

ZHG-18

17700

18000

2600

2000

ZHG-20

19700

20000

3000

2300

ZHG-24

23700

24000

3000

2300

ZHG-26

25700

26000

300

2300

ZHG-28

27700

28000

3200

2500

ZHG-30

29700

30000

3200

 2500
